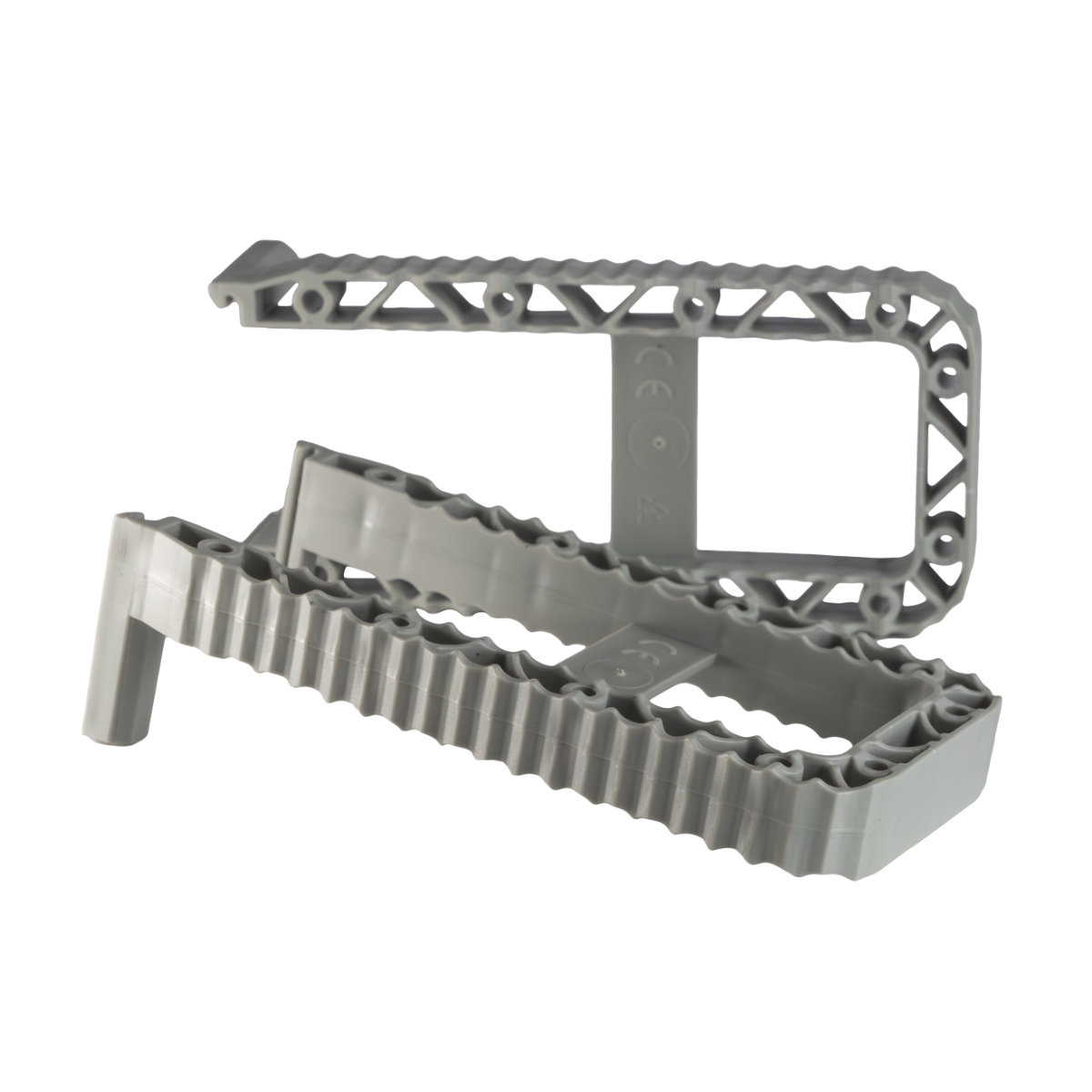

SBMK_1_EN
| EAN code | 8595568938725 |
| Zolltarifnummer | 39259080 |
| Gewicht | 0,02 kg/pcs |
| Farbe | grau |
| Material | PP |
| Halogenfreies Material | ja |
| Bleifreies Material | ja |
| Temperaturbeständigkeit | -25 - 60 °C |
| Kurzeitige Temperaturbeständigkeit | 90 °C |
| Flammwidrigkeit | 650 °C |

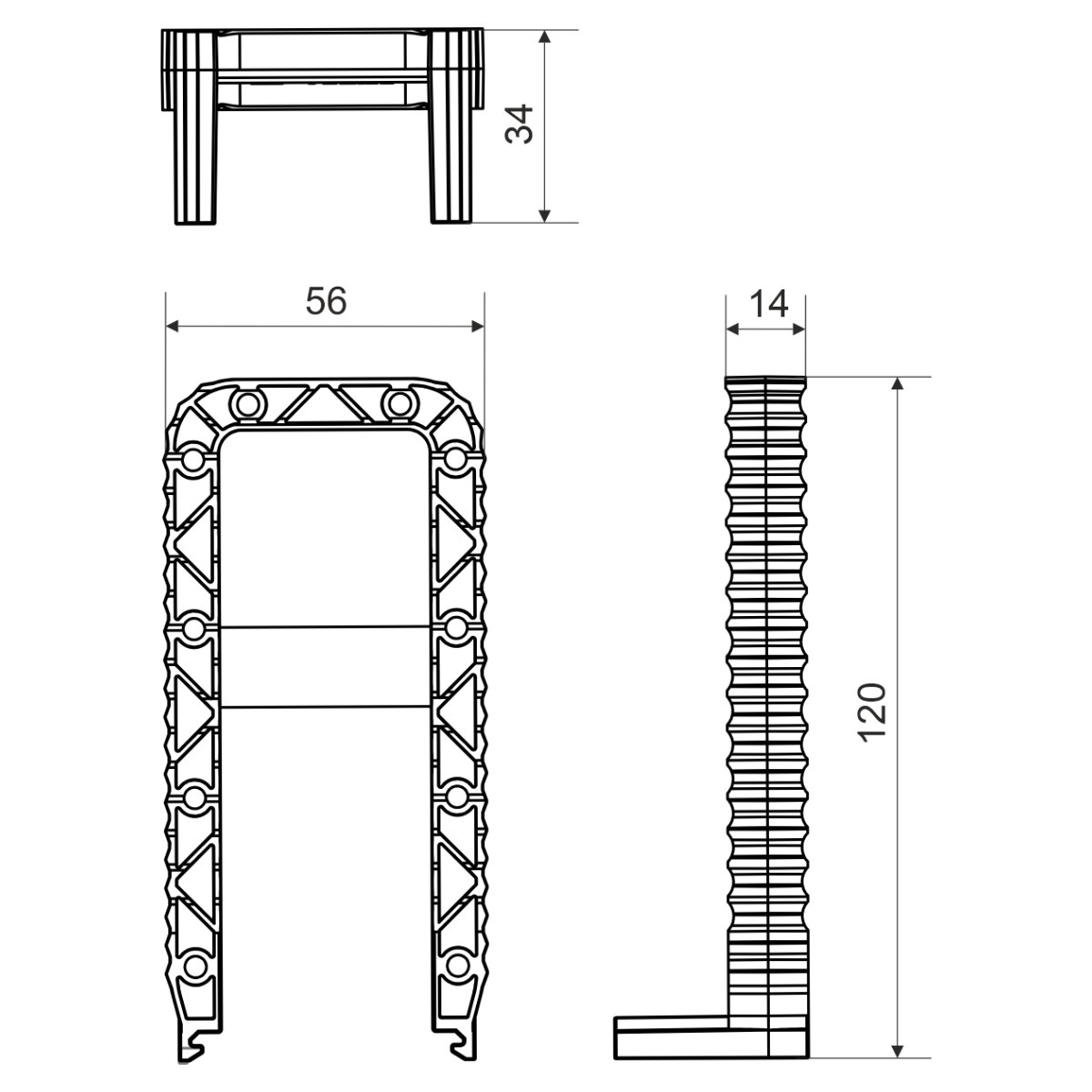

| Breite | 56 mm |
| Höhe | 120 mm |
| Tiefe | 14 - 34 mm |
| Brandklasse des Baustoffs | A1 |
| Verpackungsbeschreibung | 10 pcs mounting wings in shrink wrap |
For direct fixing of boxes to metal armature. The possibility of assembly from all sides of SB-KP xxxx boxes. Provides springing of the inserted assembly in the range of 15 to 30 mm or 30 to 50 mm, depending on the selected connection of the wing to the box. Fixing of the mounting wings by using wire or tightening strips.
