SBP_1_EN
| EAN code | 8595568938718 |
| Zolltarifnummer | 39259080 |
| Gewicht | 0,02 kg/pcs |
| Farbe | grau |
| Material | PP |
| Halogenfreies Material | ja |
| Bleifreies Material | ja |
| Temperaturbeständigkeit | -25 - 60 °C |
| Kurzeitige Temperaturbeständigkeit | 90 °C |
| Flammwidrigkeit | 650 °C |

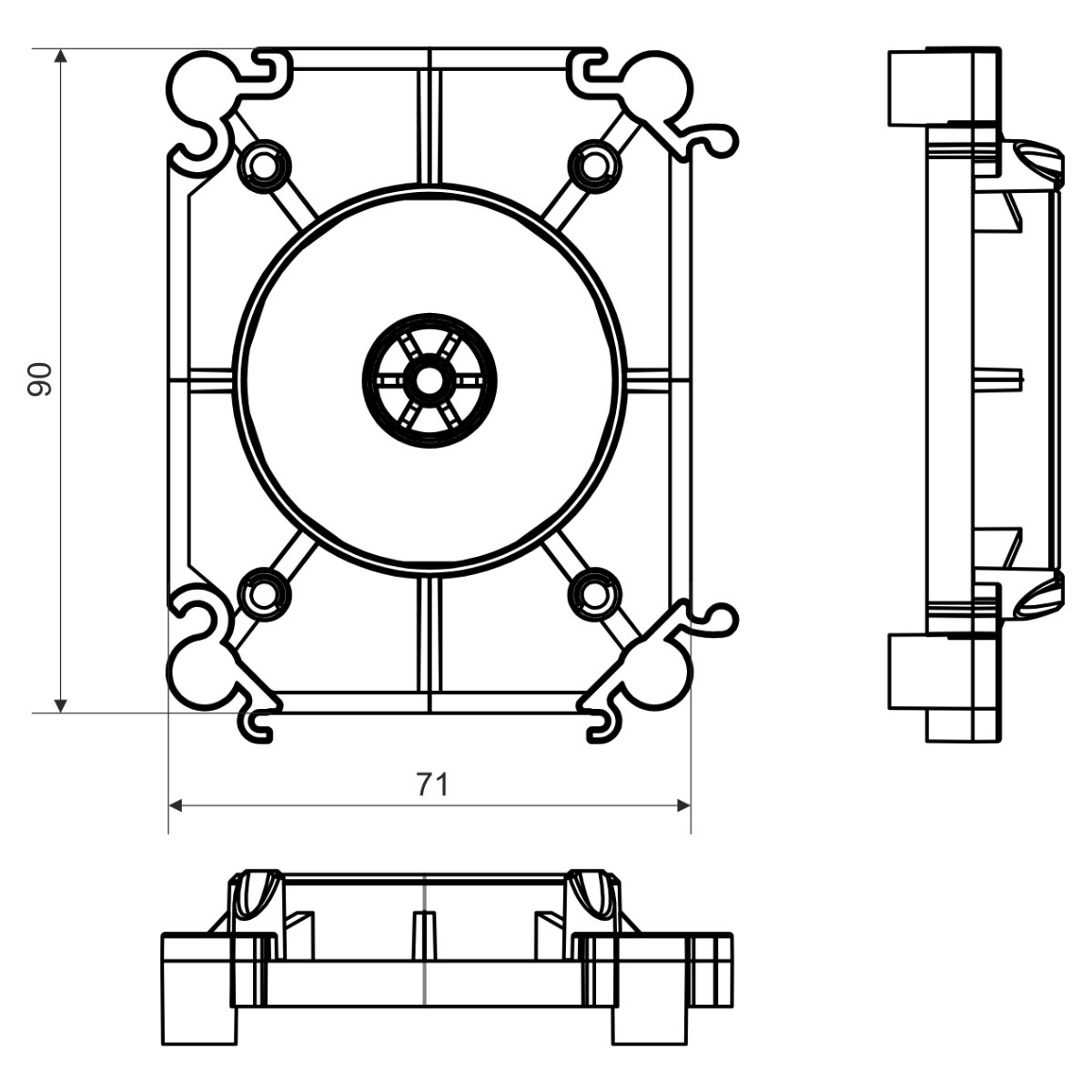

| Breite | 71 mm |
| Höhe | 90 mm |
| Brandklasse des Baustoffs | A1 |
| Abstand beim Verbinden von 2 Dosen | 71/90 mm |
| Verpackungsbeschreibung | 5pcs packed in plastic bag |

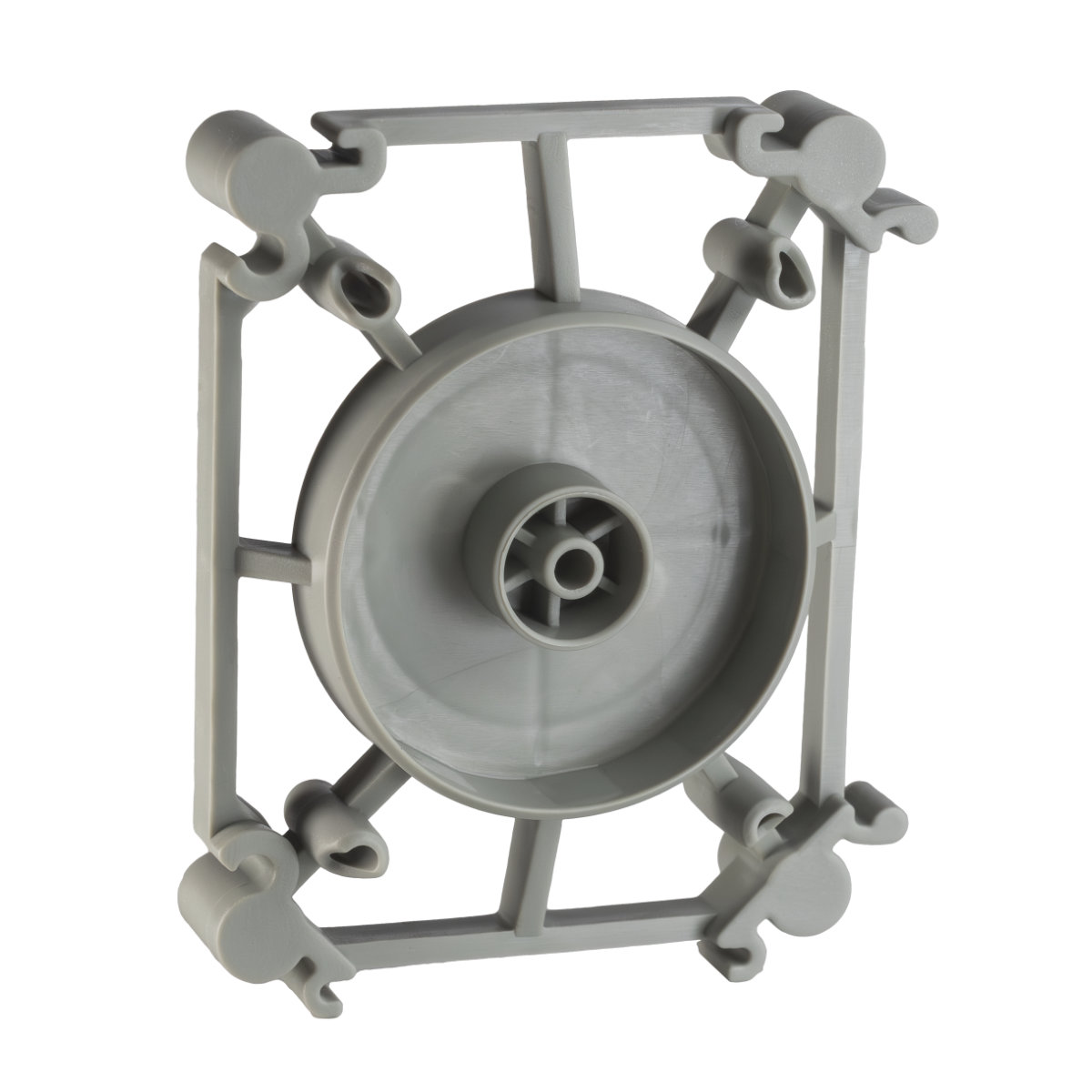

Support for cast concrete for splitting the box between opposing formwork. Support adapted for the insertion of the SB-M1 holding magnet for fixing the boxes or supports to the metal formwork. The possibility of fixing with nails or screws to wooden formwork. The possibility of connection with a pitch of 71 mm or 90 mm. It allows the opposite box to be fixed using steel rods 6 mm KBP-8 (not included in the package).
