EAN code8595568940131
Gewicht0,1940 kg/pcs
Breite104 mm
Höhe125 mm
Entsprechend der NormČSN EN 61537
Blechstärke2 mm
Für die Breite der Kabelrinne100 mm

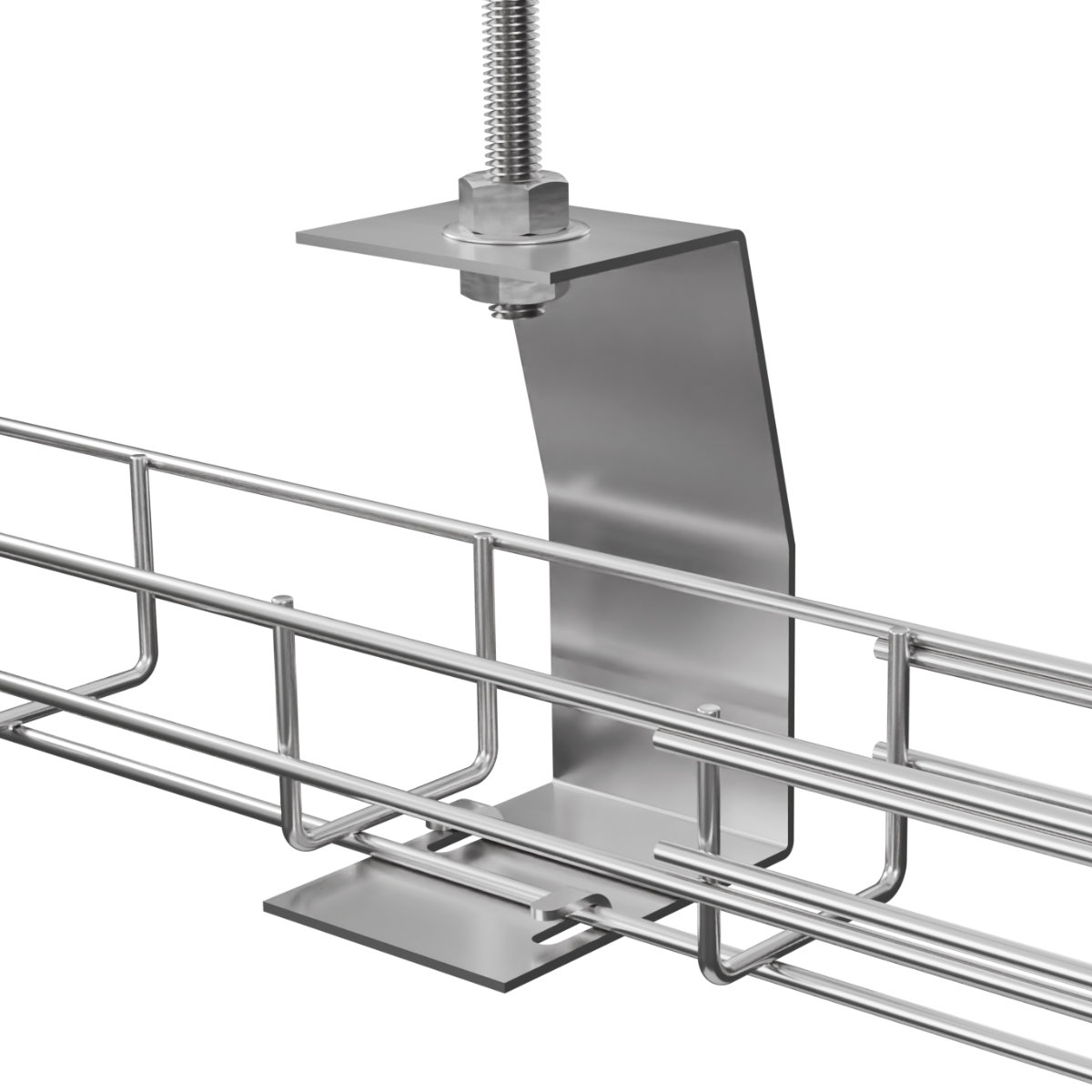

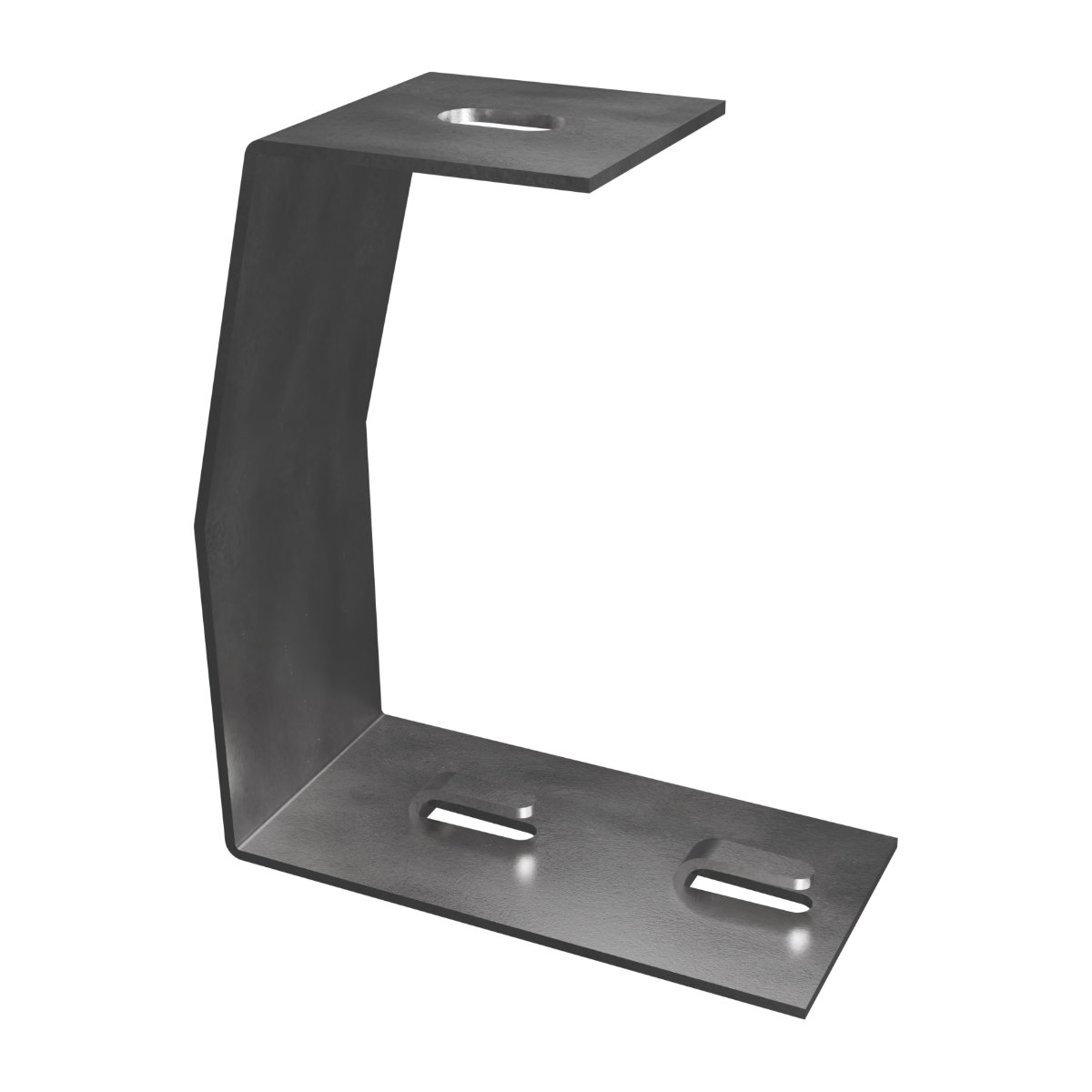

The central hanger is designed for fastening of the wire trays from ceiling together with a threaded rod Ø 8 mm and 2 nuts M 8. The cable tray is inserted into the prepared tabs, the ends of the tabs are squeezed and the tray is attached to the hanger.
