EAN code | 8595568940810 |
Zolltarifnummer | 83024190 |
Gewicht | 0,2253 kg/pcs |
Oberflächenbearbeitung | Magnelis® |
Maximale Belastung | 150 kg |
Maß A | 220 mm |
Maß B | 64 mm |
Für die Breite der Kabelrinne | 200 mm |
Für Höhe der Kabelrinne | 35 - 110 mm |

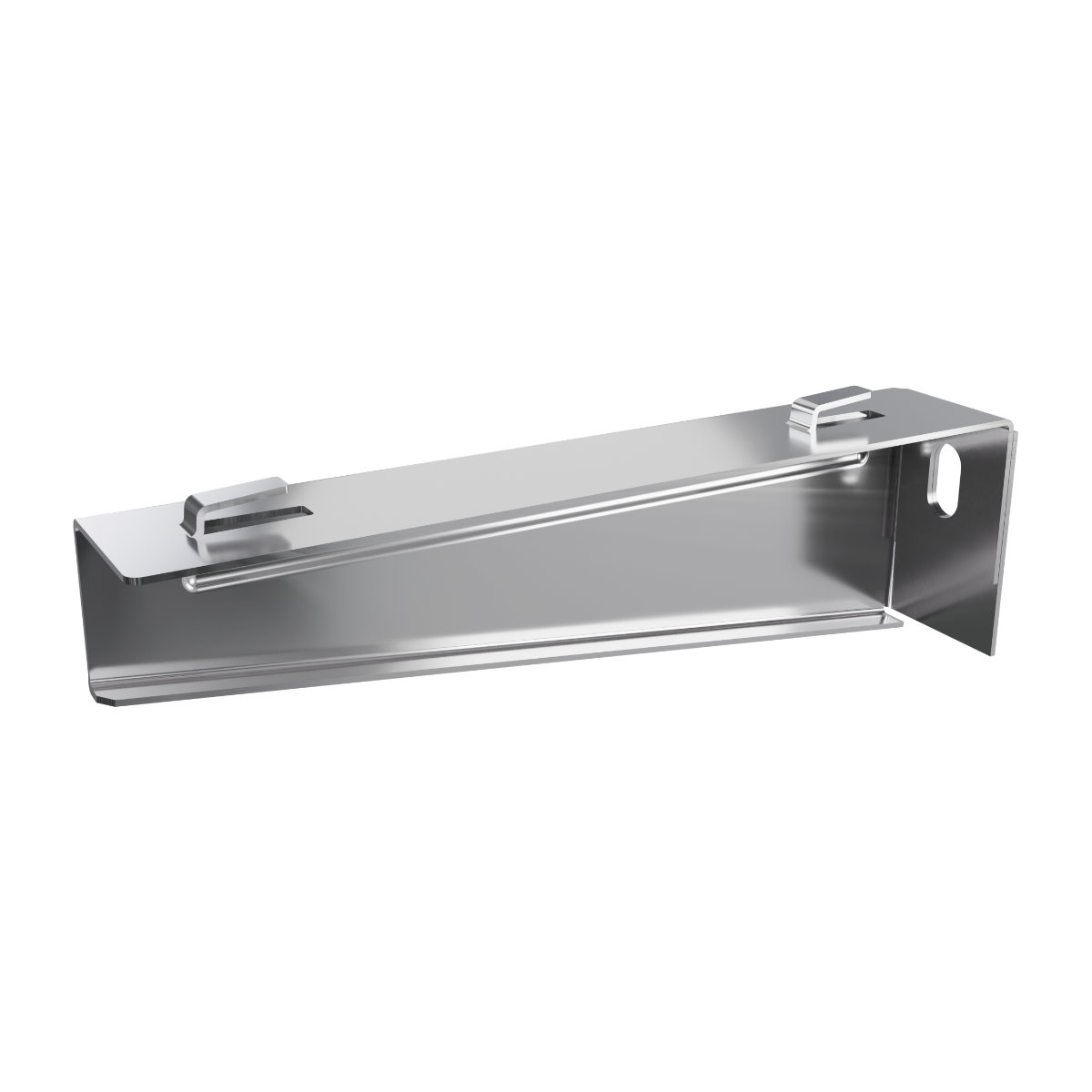

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 (2 pcs) are used. By bending the fixing protrusions, we ensure a quick and reliable fixation of the wire tray trough to the support. The bracket DSDZ 150_ZM is not suitable for the wire tray DZI 110X150. For the DZI 110X150 wire tray, it is possible to use the bracket DS 150_ZM and fix the tray to the bracket using the DZSU fastening screw. To attach the DZI 60X60 tray to the wall, it is recommended to use the DZZ hinge.
