KKD160_EN
| EAN code | 8595568945020 |
| Zolltarifnummer | 39259080 |
| Gewicht | 0,3079 kg/Stck |
| Farbe | hellgrau RAL 7035 |
| Material | PP, TPE |
| Halogenfreies Material | ja |
| Nennspannung | <= 1000 V |
| Nennstrom | <= 16 A |
| Temperaturbeständigkeit | -25 - +60 °C |
| Flammwidrigkeit | 850 °C |
| Mechanischer Schutzgrad | IK07 |
| Breite | 160 mm |
| Höhe | 160 mm |
| Tiefe | 86 mm |
| Brandklasse des Baustoffs | A1 - F |
| Schutzart | IP66 |
| Verpackungsbeschreibung sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

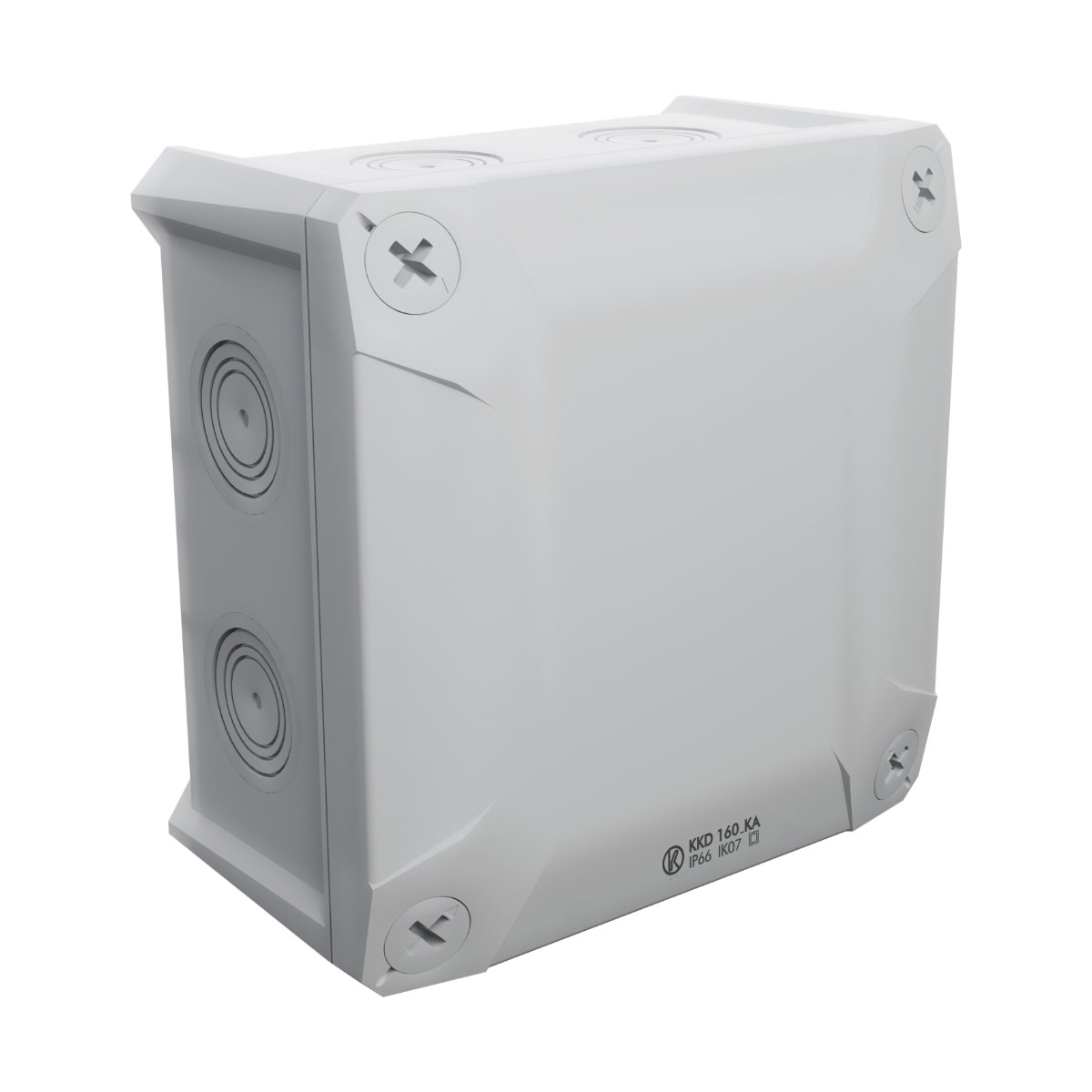

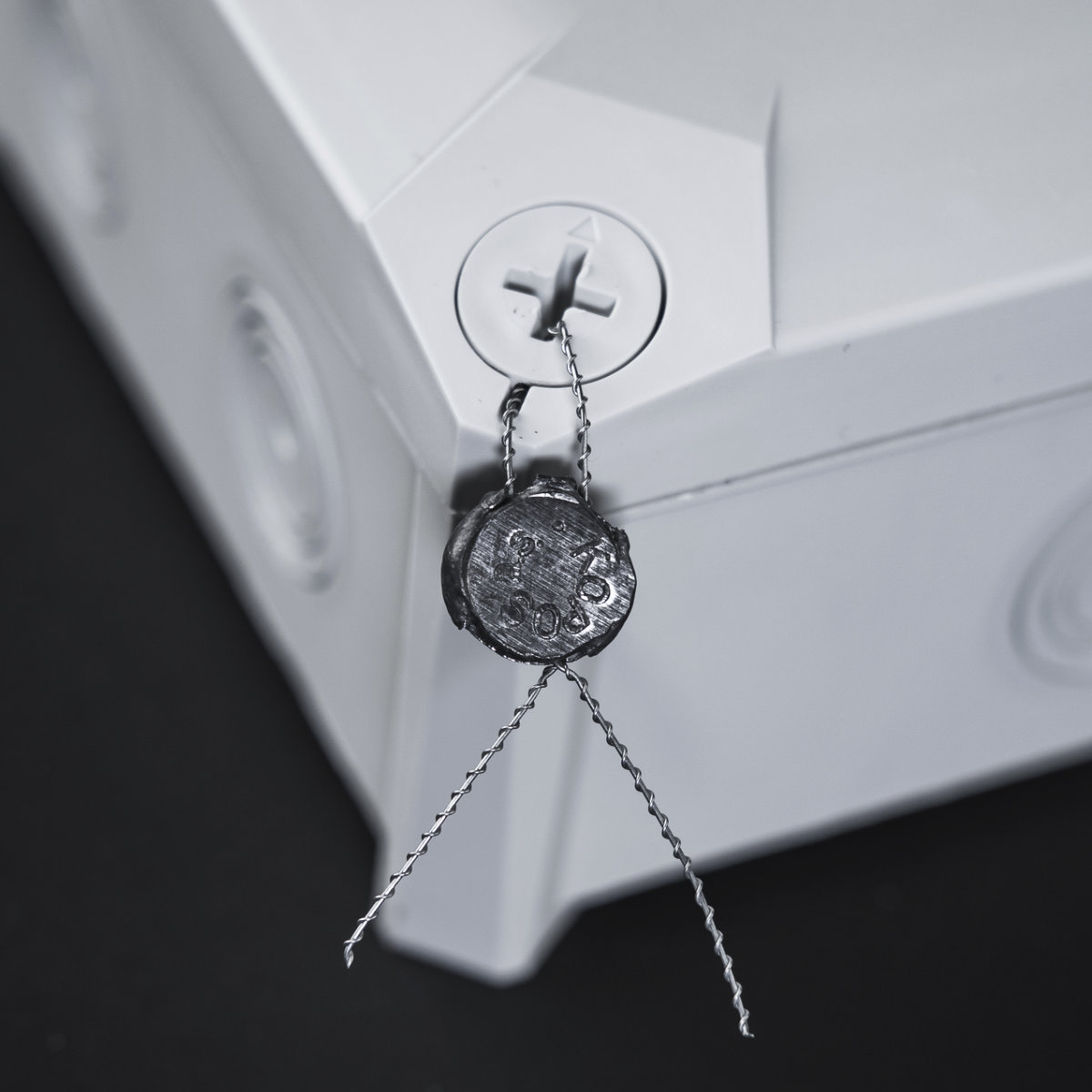

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Iintegrated seal in the openings for mounting to the base material. Perfect sealing of cables and pipes. 7x passage in the wall max. Ø32 mm, 2x passage in the bottom max. Ø32 mm. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
