KKD200_EN
| EAN code | 8595568945037 |
| Zolltarifnummer | 39259080 |
| Gewicht | 0,5264 kg/Stck |
| Farbe | hellgrau RAL 7035 |
| Material | PP, TPE |
| Halogenfreies Material | ja |
| Nennspannung | <= 1000 V |
| Nennstrom | <= 16 A |
| Temperaturbeständigkeit | -25 - +60 °C |
| Flammwidrigkeit | 850 °C |
| Mechanischer Schutzgrad | IK07 |
| Breite | 200 mm |
| Höhe | 200 mm |
| Tiefe | 113 mm |
| Brandklasse des Baustoffs | A1 - F |
| Schutzart | IP66 |
| Verpackungsbeschreibung sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

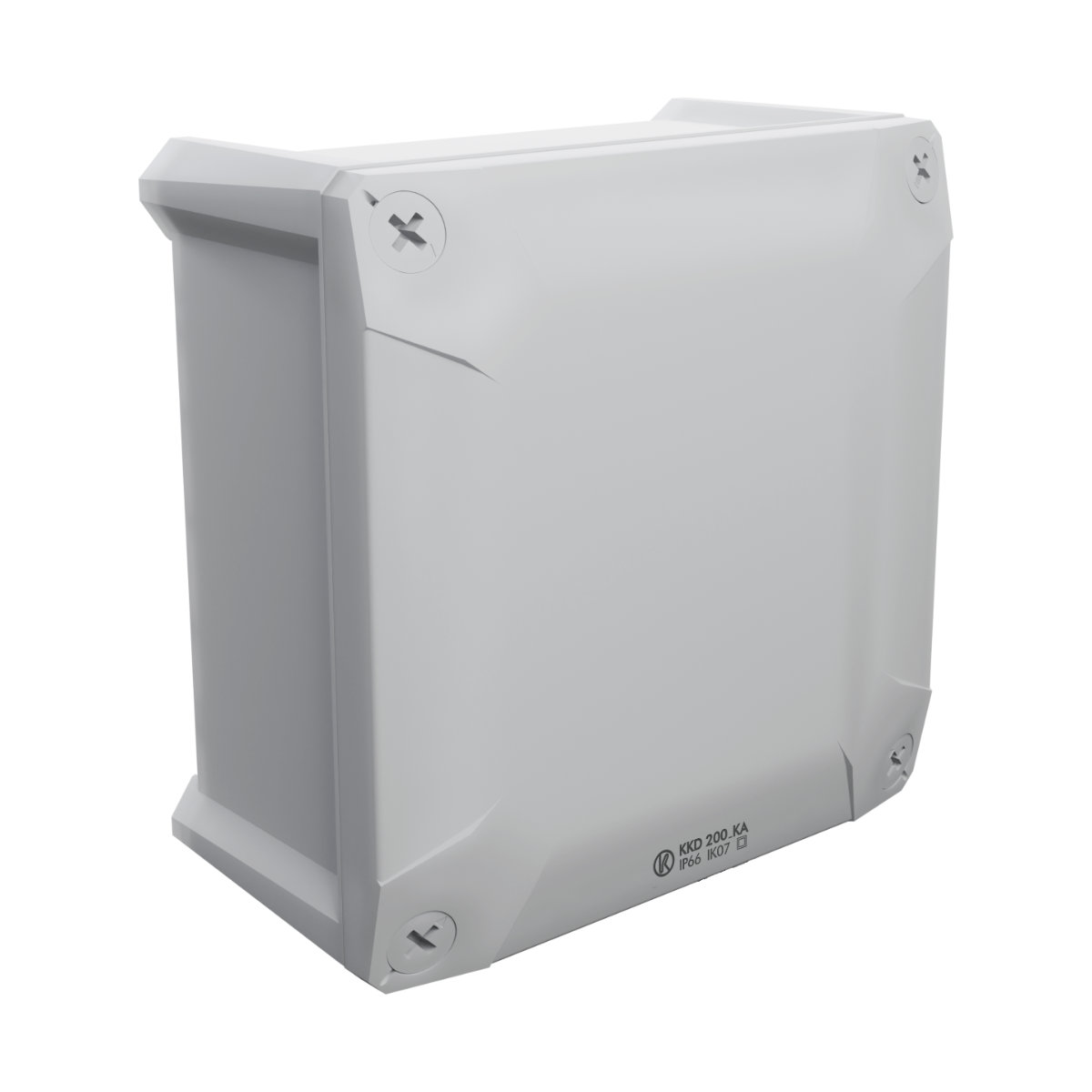

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Solid walls without pre-marked entries, suitable for using PPK.. sealing grommet. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
